Hanwha Vision, a South Korean security and surveillance products company, has introduced a new line of bi-spectrum early fire detection cameras that combine dual thermal radiometry and visible imaging lenses to support advanced fire detection, temperature monitoring, and continuous surveillance.
Developed for use in critical environments such as electric vehicle charging stations, industrial facilities, and data centres, the cameras are designed to help identify potential fire hazards before they escalate, improving both safety and operational efficiency.
Enhancing safety and reliability through dual-layer detection

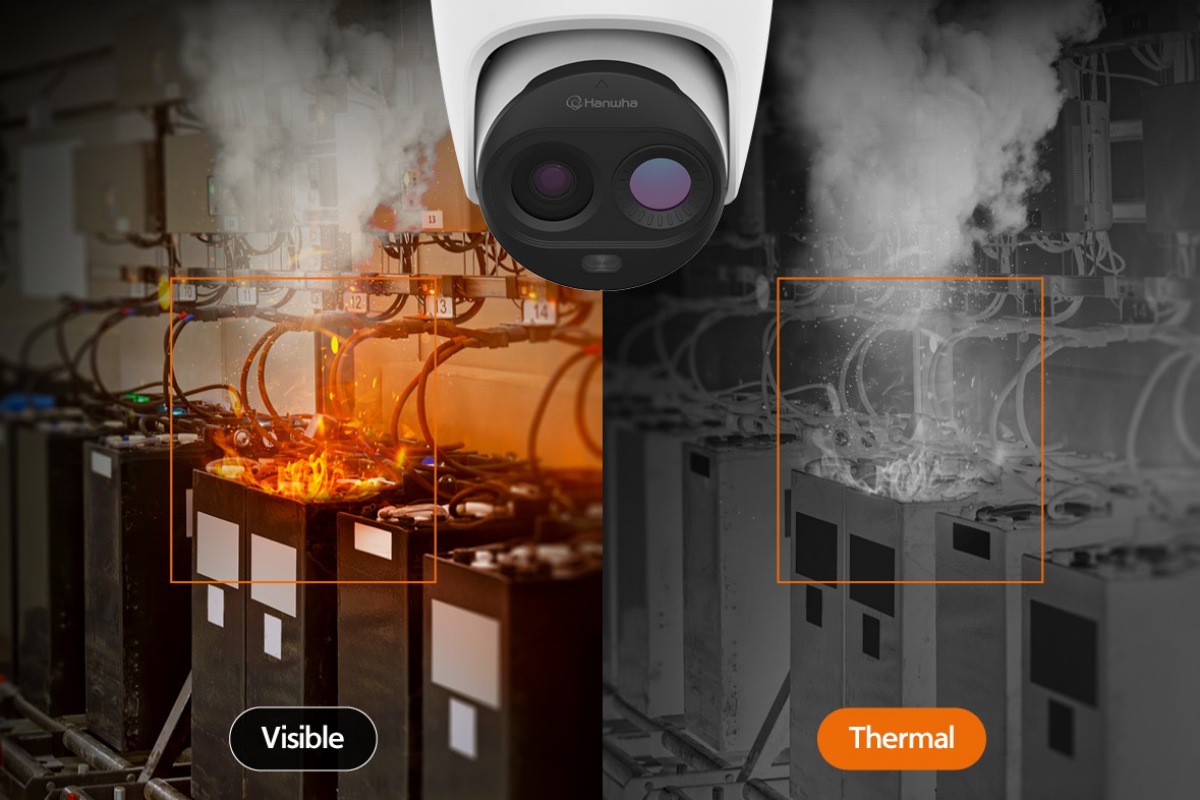

The cameras use a combination of thermal sensors and visible imaging to detect temperature changes and visible flames simultaneously.
This dual-layer detection provides early alerts, enabling operators to respond quickly before a fire spreads.
In addition to fire detection, the system supports real-time temperature monitoring to aid predictive maintenance.
Users can configure up to two regions of interest to track minimum, maximum, and average temperature values, with adjustable event rules and alarm triggers when readings exceed predefined thresholds.
The cameras can detect temperatures ranging from -10°C to 450°C, covering a wide range of industrial and environmental applications.
Equipped with a QVGA (160×120) thermal detector and wide-angle lenses – 95° and 57° depending on the model – the cameras provide coverage for short- to medium-range monitoring, up to approximately 7 and 15 metres respectively.
The ability to capture both visible and thermal images simultaneously ensures consistent situational awareness in all conditions, including darkness, fog, and smoke.
Designed for seamless integration with existing monitoring and automation systems, the cameras support the MQTT protocol for compatibility with SCADA systems and industrial networks.
Temperature data can also be accessed via Hanwha Vision’s SUNAPI protocol, ensuring interoperability with software such as Wisenet SSM, Wisenet WAVE, and third-party VMS platforms including Milestone and Genetec.
Built for durability, the compact cameras are suitable for both indoor and outdoor installations, offering long-term reliability in demanding environments.
Key features
• Dual video and thermal imaging for early fire detection
• Real-time temperature monitoring and alert configuration
• SCADA system compatibility via MQTT protocol
• Integration with leading VMS platforms (including Wisenet SSM, Wisenet WAVE, Milestone, and Genetec)
• Continuous operation in low-visibility and harsh environmental conditions
The bi-spectrum early fire detection cameras are intended as a supplementary layer of protection to conventional fire detection systems and on-site personnel, helping organisations strengthen fire prevention and safety strategies.
